Easy Troubleshooting:Helps diagnose and fix issues with your ac water safety switch, simplifying the troubleshooting process for electrical relays.
Adjustable Delay Time:Offers a delay time of 0.5S-10S, allowing for precise control over water level management in your appliances.
Customizable Relay:The EKR8-6312 is fully customizable, catering to specific needs and applications in your whirlpool washer or other devices.
Versatile Working Voltage:Operates efficiently across a wide range of 24-240VAC/DC, ensuring compatibility with various electrical systems.
General Purpose Relay:Designed for general use, this relay is a reliable solution for various electrical systems, including condensate float switches.
Operating Voltage: Typically 220V AC (check model specifications for exact voltage).
Relay Output: Usually SPDT (Single Pole Double Throw) with NO (Normally Open) & NC (Normally Closed) contacts.
Probe-Based Sensing: Uses electrodes (probes) to detect water levels (conductive liquid required).
Adjustable Sensitivity: Some models allow sensitivity adjustment for different water conductivities.
LED Indicators: Shows relay status (on/off).

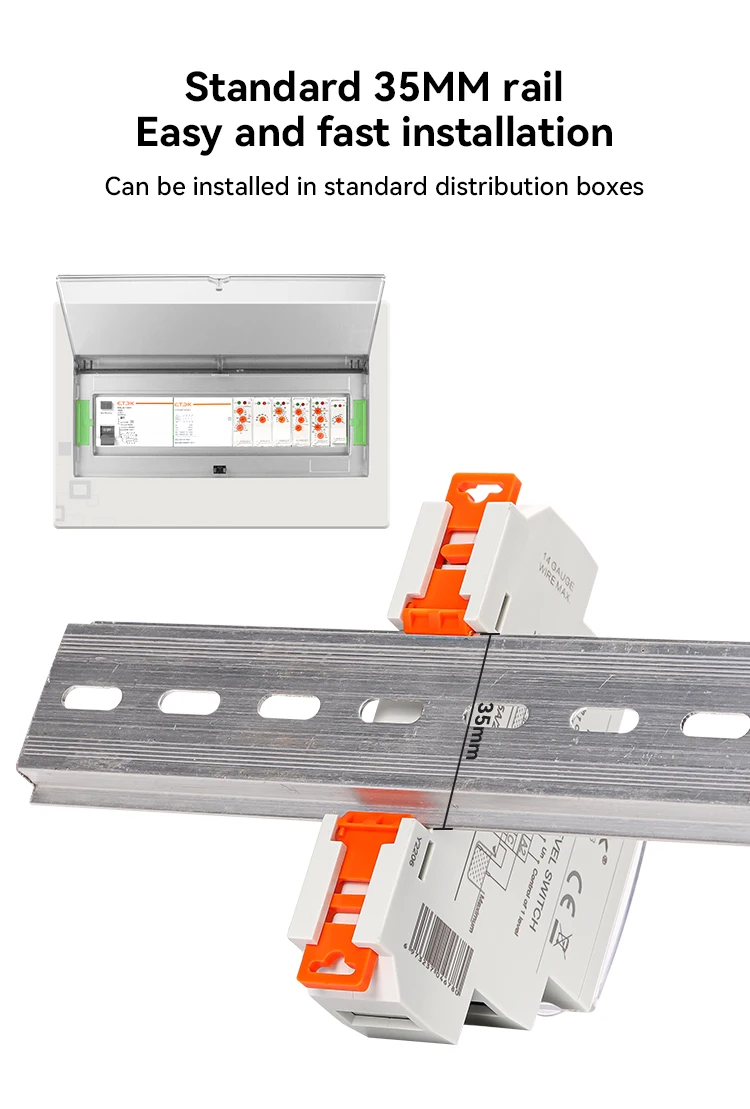

Mounting: DIN rail or panel mounting.

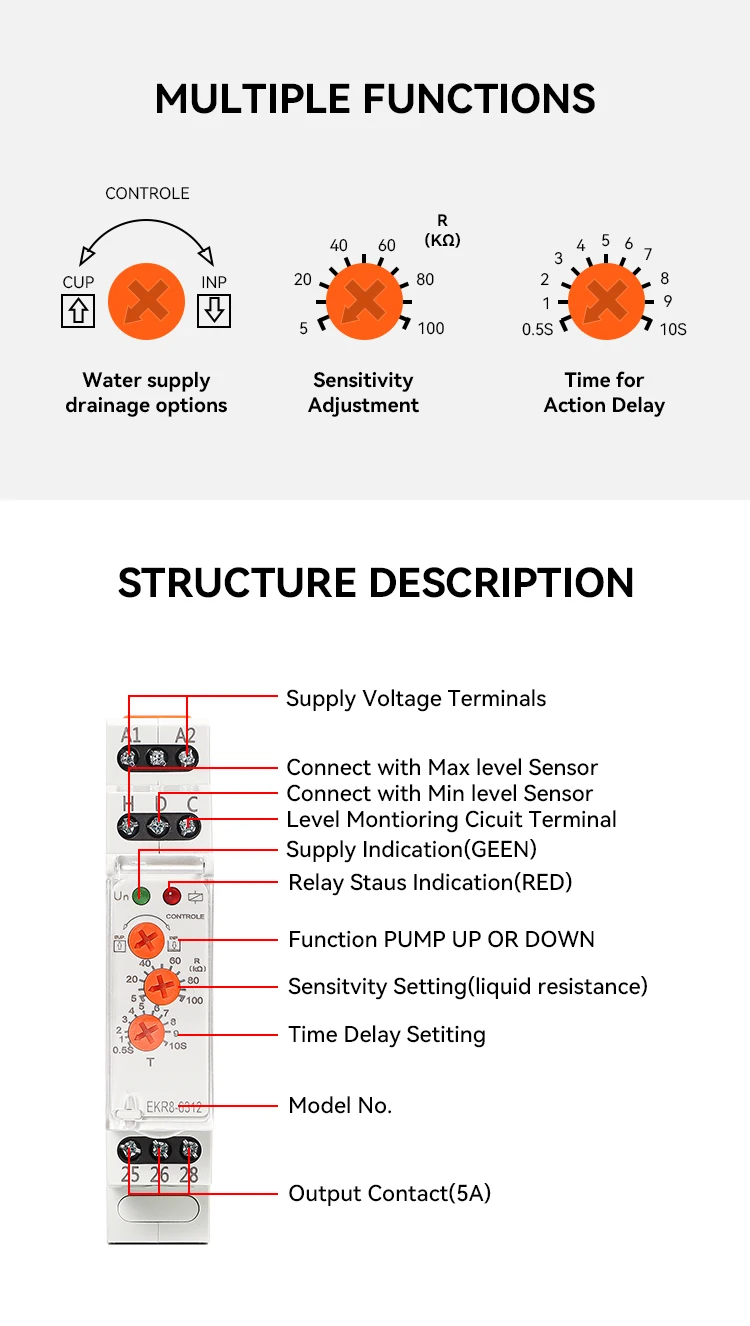

Wiring:
The EKR8-6312 typically has terminals for:
Power Supply (L, N) – Connect to AC voltage (e.g., 220V).
Probes (E, S, M):
E (Common Electrode) – Goes to the lowest point (e.g., bottom of tank).
S (Start/High-Level Probe) – Activates relay when water touches it (pump off).
M (Stop/Low-Level Probe) – Deactivates relay when water drops below (pump on).
Relay Output (COM, NO, NC) – Connects to pump/control circuit.
Description
Description
This ETEK EKR8-6312 Relay Level Switch features a compact and lightweight design, making it ideal for space-limited applications. It operates at a low power consumption level, ensuring energy efficiency and prolonged equipment lifespan. With SPDT functionality, a 5A load current, and compatibility with AC/DC 24-240V, it delivers reliable performance in domestic water systems, sewage treatment, and special liquid supply systems. The product is CE-certified, ensuring compliance with EU safety standards and providing market access assurance.
About this product
Includes generated contents
* Compact and Lightweight Design: This ETEK EKR8-6112220 relay level switch type 1 knob is designed with a miniature size, making
it ideal for applications where space is limited. Its lightweight construction allows for easy installation and handling,
providing a convenient solution for your project needs.
* Low Power Consumption: This switch operates at a low power level, which helps to reduce energy costs and prolongs the lifespan
of your equipment. Its low contact load ensures reliable performance and minimal wear and tear, resulting in a more efficient
and durable product.
* Reliability and Durability: This SPDT relay is built with high-quality materials, ensuring that it is capable of withstanding
heavy loads and harsh environments. With a load current of 5A, it can handle a wide range of applications, making it a reliable
choice for your project needs.
* 12V Output Voltage: The ETEK EKR8-6112220 relay level switch type 1 knob operates on a 12V output voltage, providing a stable
and consistent power supply. This makes it suitable for use in various electronic devices and systems, ensuring that it can
deliver consistent and reliable performance.
* Easy Installation and Modularity: The ETEK EKR8-6112220 relay level switch type 1 knob is designed for easy installation, with
its modular design making it simple to integrate into your existing system. It is also compatible with floatless level
switches, relays, and a variety of other products, providing a versatile and adaptable solution for your project needs.
