The silver contact limit switch can increase the frequency of use of the conductor, increase the contact effect, and enhance the performance of the conductor. It also has the advantages of wear resistance, heat resistance and oxidation resistance.
Able to withstand some washdowns, shock and vibration
Easy-to-wire, smooth operation and reliable
The limit switch can be widely used in automatic control of various machinery, limit movement, transmission mechanism action or program control switch
Material : ALLOY

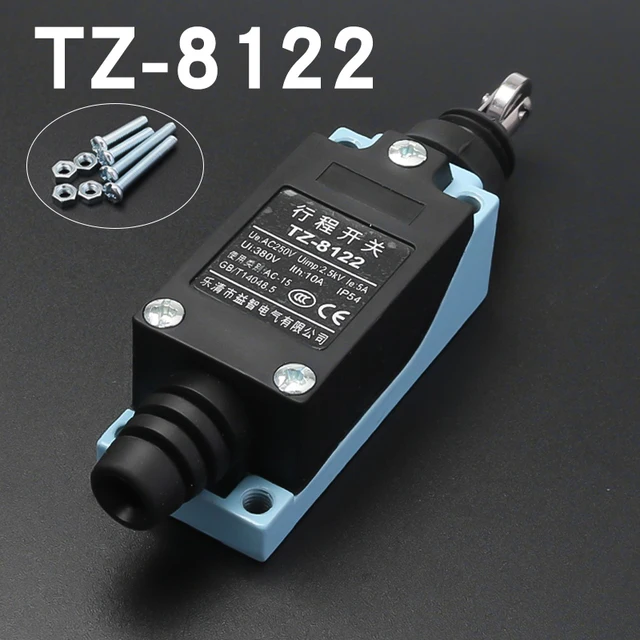

Model Number : TZ
Features : micro switch
Switch Type : MICRO SWITCH
◼Double circuit type of limit switch
◼Conduit design for convenient cabling
◼Various actuators for different applications
◼Small size, water-proof and oil-proof construction
◼High mechanical strength,consists of intensive plastic and aluminum cast
◼Built-in contact box has double-spring and long mechanical life Smooth operation with larger over travel distance
Ratings
Rated Voltage
Noninductive Load (A)
Inductive Load (A)
Resistance Load
Lamp Load
Inductive Load
Motor Load
NC
NO
NC
NO
NC
NO
NC
NO
125VAC
250VAC
5
5
5
5
1.5
1
0.7
0.5
3
3
3
3
2
1.5
1
0.8
8VDC
5
5
3
3
5
4
3
3
14VDC
5
5
3
3
4
4
3
3
30VDC
5
5
3
3
4
4
3
3
125VDC
0.4
0.4
250VDC
0.2
0.2
Inrush Current
N.C: below 24A, N.O: below 12A
NOTES: 1.Inductive load has a power factor of 0.4 min.(AC) and a time constant of 7 msec. max.(DC).
2.Lamp load has an inrush current of 10 times the steady-state current,while motor load has an inrush current of 6 times the steady-state current.
3.Product with spring, its usable range of operating part is within one third of the whole spring length from the front end of spring.
Operation speed
5mm-0.5m/s
Operating frequency
Electical: 30 operations/min
Contact resistance
25mΩ max. (initial value）
Insulation resistance
100mΩ min. （below 500VDC）
Dielectric strength
1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity
1500VAC, 50/60 Hz for 1 minute between current-carrying and non–current-carrying metal parts
1500VAC, 50/60 Hz for 1 minute between each terminal and ground
