Multiple positions: Typically offers 2-12 positions (sometimes more)
Changeover function: Can switch between different circuits or connection paths
Rotary operation: Controlled by turning a knob or dial
Contact arrangements: Various options (SPDT, DPDT, 3P4T, etc.)
Mounting styles: Panel mount, PCB mount, or through-hole
Common Applications
Audio equipment: Input/output selection, tone control
Industrial controls: Mode selection, function switching
Test equipment: Range/function selection
Power distribution: Source selection
Automotive systems: Function control
Selection Considerations
Number of poles and throws needed
Current/voltage rating
Environmental conditions (sealing for moisture/dust)
Mechanical life expectancy
Shaft type and length
Panel cutout requirements
LW26-63/3 3 Position Cam Rotary Changeover Switch
Part#LW26-63/3
The rotary changeover switch is a 3-position 12 terminal cam switch with a latching ON/OFF/ON (1-0-2) design. Ui: 690V, Ue: 440V AC, Ith: 63A.
It is an ideal choice for electrical wiring in the power switches, speed switches, and asynchronous motor for their start-up and reversing, also can make the conversion of the control circuit.
LW26-63/3 3 Position Cam Rotary Changeover Switch Details
Safety Protection
This selection changeover switch is made of flame-retardant PC material that has good insulation and high-temperature resistance. With flexible handle conversion, easy control with rotary selector, and easy installation with square plate and screws.
Sturdy & Durable
High-quality copper parts with silver alloy points make it not easy to slide and have strong thermal conductivity. The quality and service life of the toggle switch are improved and durable to use.
Technical Specification

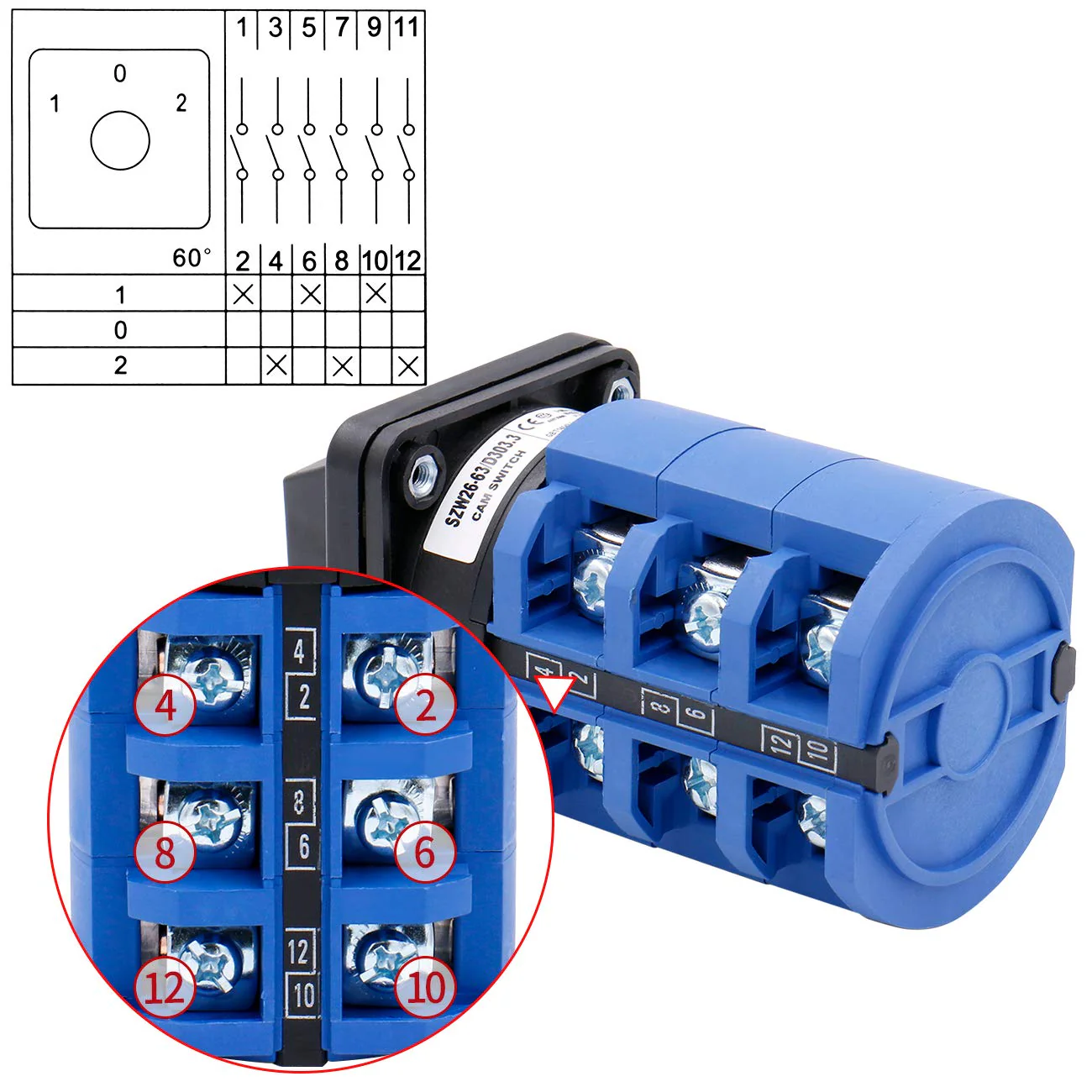

The Universal Rotary switchis a 3-position 12 terminal rotary switch with a latching ON/OFF/ON (1-0-2) design. Ui: 690V, Ith: 63A, Ue: 440V AC. Image 3 has shown which terminal will be connected in different positions, please read the wiring diagram as a reference.
Widely Application
This rotary changeover switch is very suitable for the electrical wiring of power switches, speed control switches, induction motors, and also for control circuit switching.
