Round Rocker Switches 2 Pin SPST Black with Pre-Welded Wires (6A – 125V AC, 3A – 250V)

Color: Black-on/Off

Operation mode	ON-ON-OFF
Current rating	10 Amps
Operating voltage	250 Volts
Contact type	Normally Open

DURABLE: The Round Rocker Switch is a durable push on/off switch, which is made of high-strength nylon.
VOLTAGE: These switches use 10 amp 125 volts or 6 amp 250 volts.
MEASUREMENTS: The diameter of the head of this switch is 23mm; the diameter of the button is 18mm; the required hole size is 21mm; the depth including the contacts is 25mm.
EASY TO USE: It is a round rocker style switch with on/off legends on the button. Press one side to turn it on, press the other side to turn it off. These switches can replace your old or damaged switches by simply snapping them into place.
PACK OF 10PCS: This item comes in a pack of 10 so you can replace multiple switches at once so that your boat panel or car dashboard looks stylish and new.

Product description

Colour: black.
Material: Plastic
Size: 2 x 2 x 3 cm / 0.8 x 0.8 x 1.2 inches.
Voltage: 6A / 250V
Switch Type: Round Rocker
Contact resistance: ≤50Ω
Insulation resistance: ≥100M Ω
Life (number of switching cycles on/off): ≥ 10000.

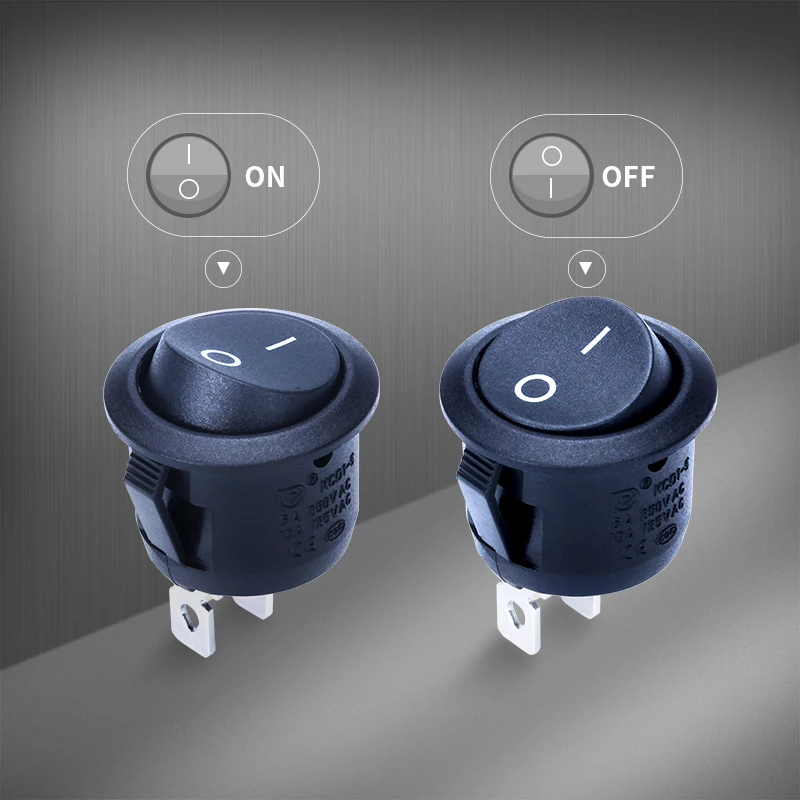

It is a round rocker style switch with on/off legends on the button; press one side to turn it on, press the other side to turn it off.
This electrical switch uses 6A / 250V voltage.
These switches can replace your old or damaged switches by simply snapping them into place.
You will receive a quantity of 10 with each order so you can replace multiple switches at once so your boat panel or car dashboard looks stylish and new.
Package included
1 x set of 10 pieces 2 pin snap-in round rocker that locks on car boat switch 6A 250V

Description

The 2P ON-OFF round rocker switch without a lamp, featuring a durable nylon 66 housing and brass terminals plated with silver. It has a rating of 10A 125VAC/6A 250VAC and is available in black, white, grey, red, and transparent button colors. It has a contact resistance of 35mOhm max, an insulation resistance of 100mOhm min (500VDC), and a dielectric strength of 1500VAC 1 minute. This switch has a mechanical life of >= 100,000 cycles and is certified by CE, CQC, and SGS. It is available for both OEM and ODM applications.

Features:

2P ON-OFF rocker switch without a lamp
Nylon 66 housing and brass terminals plated with silver
Available in black, white, and grey housing colors
Available in black, white, grey, red, and transparent button colors
Rating of 10A 125VAC/6A 250VAC
Contact resistance of 35mOhm max
Insulation resistance of 100mOhm min (500VDC)
Dielectric strength of 1500VAC 1 minute
Mechanical life of >= 100,000 cycles
Certified by CE, CQC, and SGS
Available for both OEM and ODM applications

Product features

This switch has the font “ON OFF”, which makes it easier to identify the switch state at that time.Mechanical life: more than 80,000 cycles. Electrical life: more than 10, 000 cycles

Product Details

Product name: Rocker Switch; Package Content: 10Pcs Rocker Switches+20Pcs Wires.And it comes with a keyhole slot to prevent unwanted rotation；Wired design:Easy to install, and saves unnecessary cost.

Rated Voltage and Current : AC 125V, 10A; AC 250V, 6A； Mounting Diameter: 20mm/0.8″; Total Size: 23 x 28mm/0.91″ x 1.1″(Max.D*H)

This truck rocker switch control uses copper-plated silver contacts, has good electrical conductivity, and uses high-quality materials and flame-retardant casing for high safety,NOTE: PLEASE POWER OFF before installation
