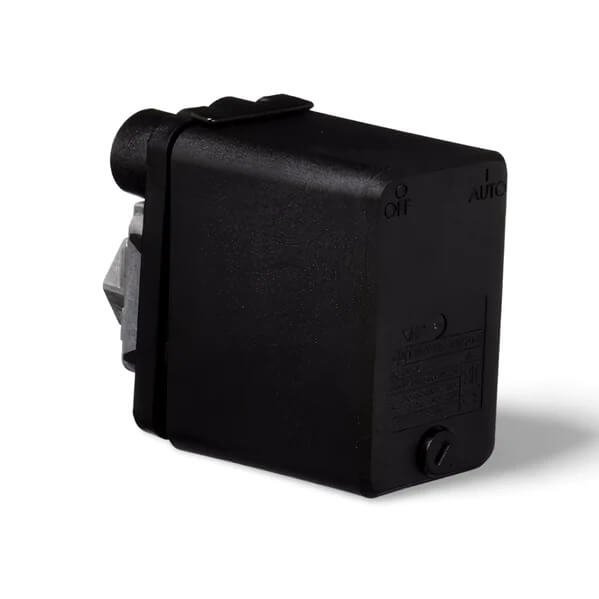

Schneider Electric XMPA12C2131 Pres Switch 1.3-12Bar, Pressure Switch Xmp 12 Bar Adjustable Sc
Schneider Electric
The XMP switches are electromechanical pressure switches for control circuits.::They are used to control the pressure of water and air.::It is an IP54 switch with an adjustable differential for regulation between 2 thresholds, without decompression valve.::It is a bare case switch, without decompression valve.::Ajustable range of switching point: from 1.3bar to 12bar or from 18.85psi to 174psi.::3 NC contacts, G 3/8 female fluid connection, 2 entries incorporating n°13 cable gland.
Operation mode
ON-OFF-ON
Current rating
16 Amps
Operating voltage
690 Volts
Contact type
Normally Closed
Connector type
Clamp
Brand
Schneider Electric
Switch type
SPDT
Terminal
Screw
Material
Plastic
Item dimensions L x W x H
11.5 x 17 x 6.2 centimetres
Main
Range of product OsiSense XM
Pressure sensor type Electromechanical pressure sensor
Pressure sensor name XMP
Pressure sensor size 12 bar
Fluid connection type G 1/4 (female) conforming to ISO 228
Controlled fluid Sea water (0…70 °C)
Fresh water (0…70 °C)
Air (0…70 °C)
Cable entry 2 entries tapped for Pg 13.5 cable gland conforming
to NF C 68-300
Contacts type and composition
3 NC snap action
Product specific application
–
Pressure switch type of
operation
Regulation between 2 thresholds
Electrical connection Screw-clamp terminals, clamping capacity: minimum : 2 x 4 mm²
Electrical circuit type Power circuit
Scale type Adjustable differential
Local display Without
Sale per indivisible
quantity
1
