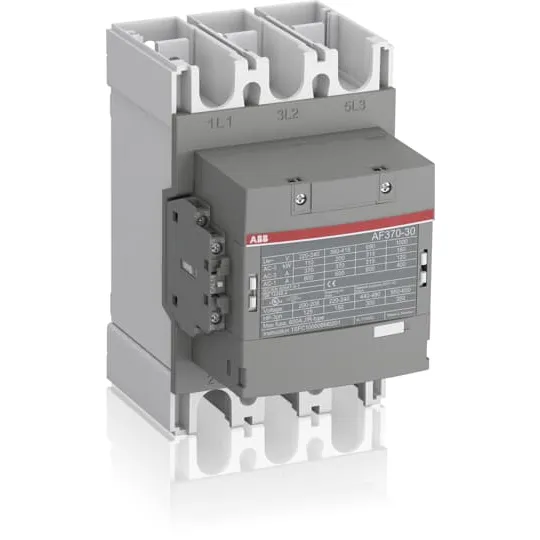

ABB Contactor AF370-30-11-13 | 1SFL607002R1311
SALE
General Information
Extended Product Type : AF370-30-11-13
Product ID : 1SFL607002R1311
EAN : 7320500481899
Catalog Description: AF370-30-11-13 Contactor
Long Description : The AF370-30-11-13 is a 3 pole – 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, controlling motors up to 200 kW / 400 V AC (AC-3) or 300 hp / 480 V UL and switching power circuits up to 600 A (AC-1) or 520 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
24x7 Support +968 99 26 36 46
Premium Quality
10 days Return & Exchange
Deliver in 5-7 Days
Worldwide Shipping
Sellers can Quote
ر.ع.890.000Original price was: ر.ع.890.000.ر.ع.870.000Current price is: ر.ع.870.000.
Rated Operational Voltage: Up to 1000 V (IEC), 600 V (UL)
Rated Current:
AC-1: 600 A
AC-3: 370 A
Motor Control Capacity:
200 kW at 400 V AC (IEC)
300 hp at 480 V AC (UL)
Control Voltage Range: 100–250 V AC/DC
Auxiliary Contacts: 1 NO + 1 NC
Coil Technology: AF electronic coil with wide voltage tolerance and built-in surge suppression
Short-Time Withstand Current (Icw): 3700 A for 1 second
Mechanical Durability: 5 million operations
Operating Temperature: -40°C to +70°C
Mounting: Panel mount with screw terminals
Enclosure Protection: IP00/IP20
Dimensions (W x D x H): 140 mm x 180 mm x 225 mm
Weight: Approximately 4.64 kg
Wide Control Voltage Range: The AF electronic coil accepts a broad range of control voltages (100–250 V AC/DC), simplifying inventory and enhancing flexibility.
Energy Efficiency: Reduced panel energy consumption due to the efficient coil design.
Voltage Tolerance: Capable of withstanding short voltage dips and sags, ensuring reliable operation in unstable power conditions.
Built-in Surge Suppression: Protects the contactor from voltage spikes, extending its lifespan.
Compliance and Certifications: Meets IEC 60947-4-1 standards and is certified by CE, RoHS, UL, and others.
